Yes, the Kubernetes Gateway API is intended to be an evolution and successor to the traditional Ingress API in Kubernetes.

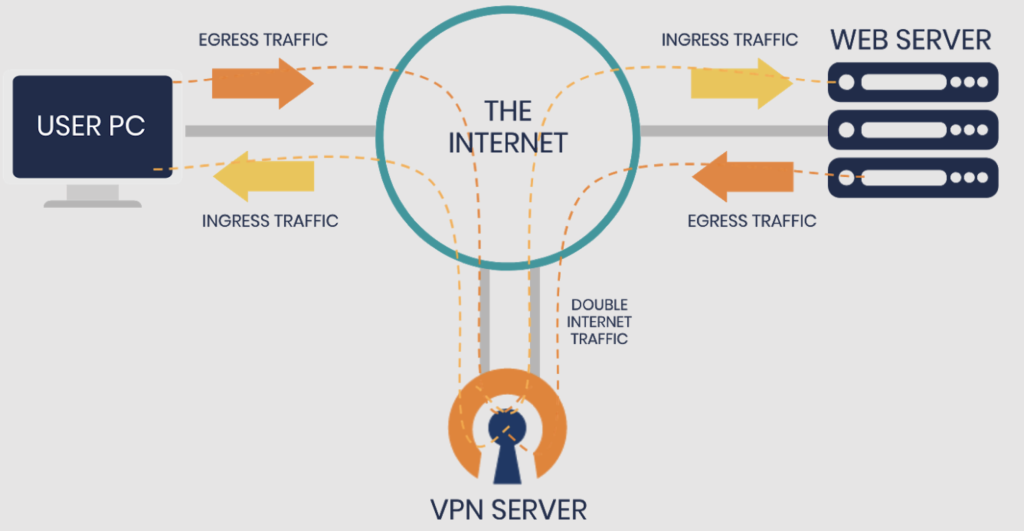

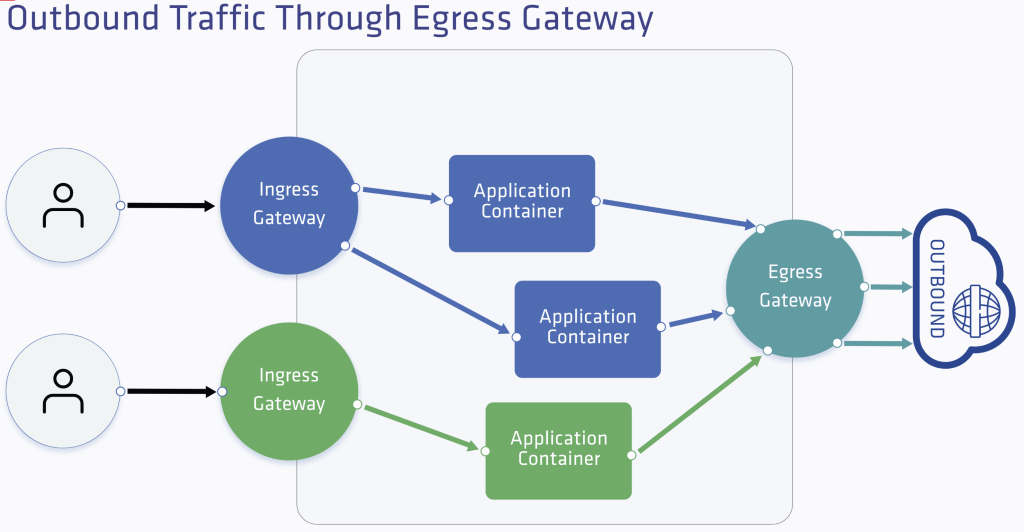

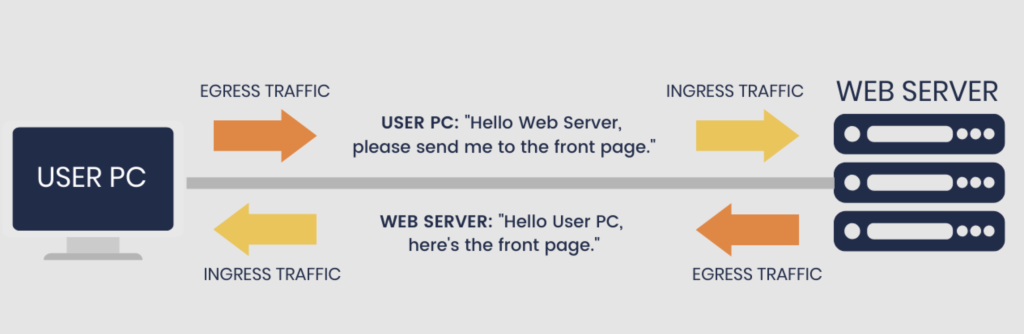

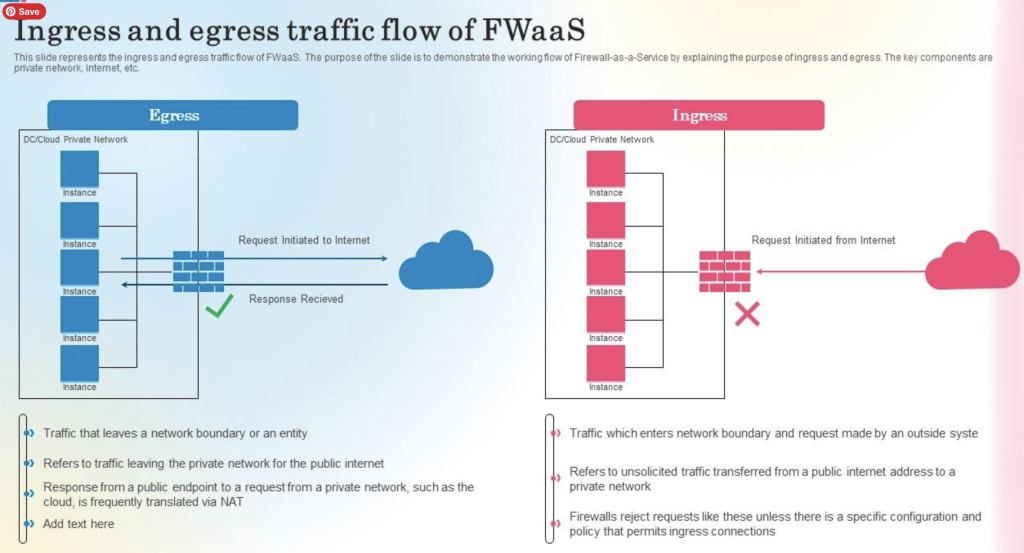

First lets understand the differnce between ingress vs egress traffic

Ingress = something from outside coming in

Egress = something from inside going out

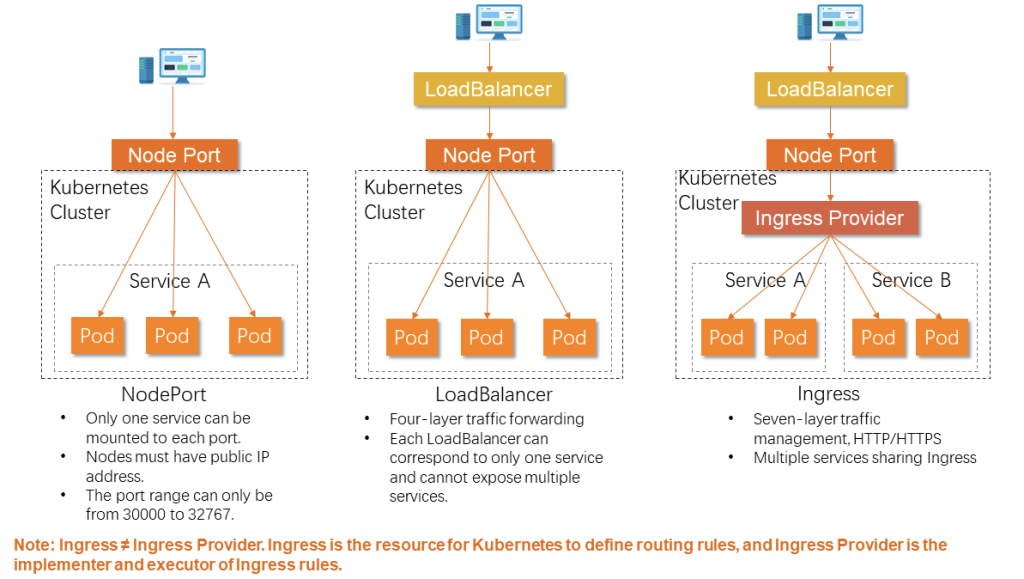

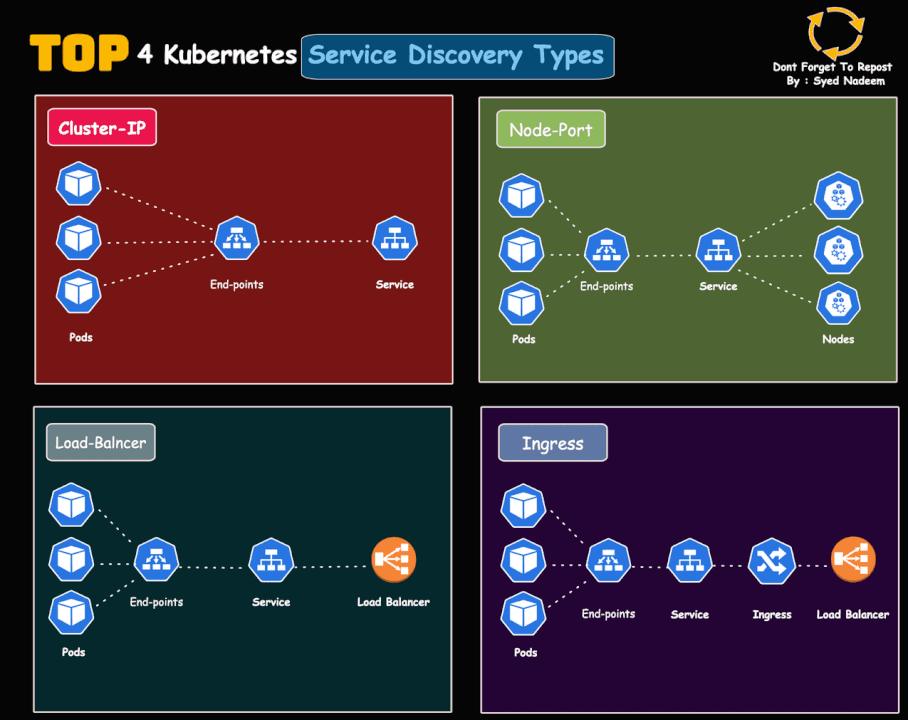

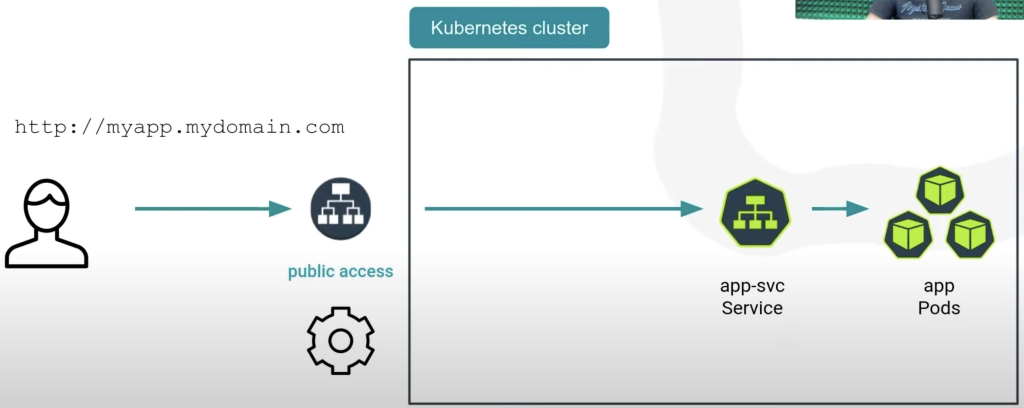

Now, Lets understand what are the ingress options we have in Kubernetes

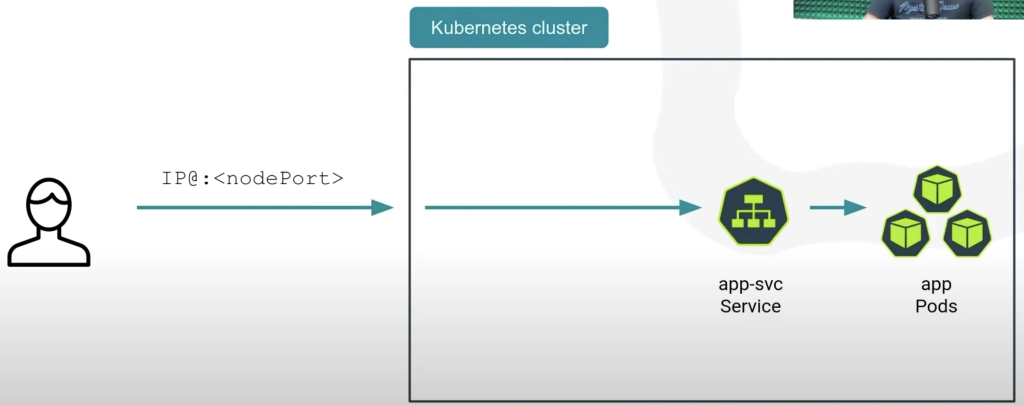

• Kubernetes NodePort Service
• Kubernetes LoadBalancer Service
• Kubernetes Ingress Resource (Legacy)
• Kubernetes Gateway API (Modern)

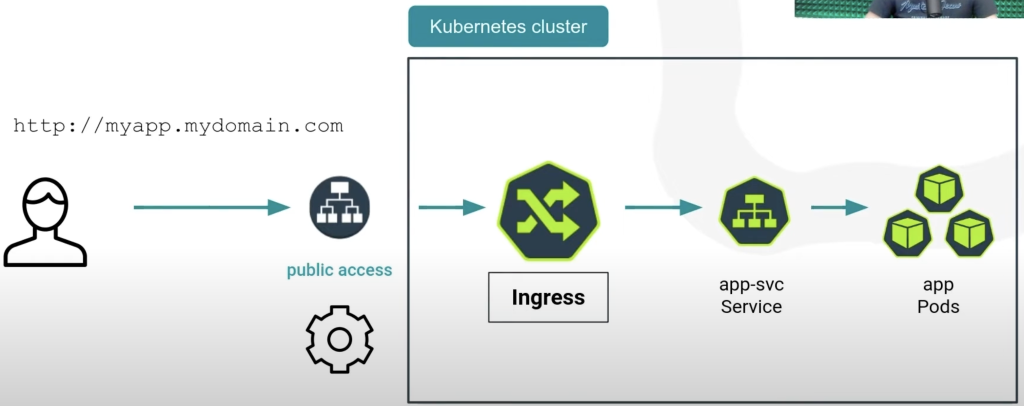

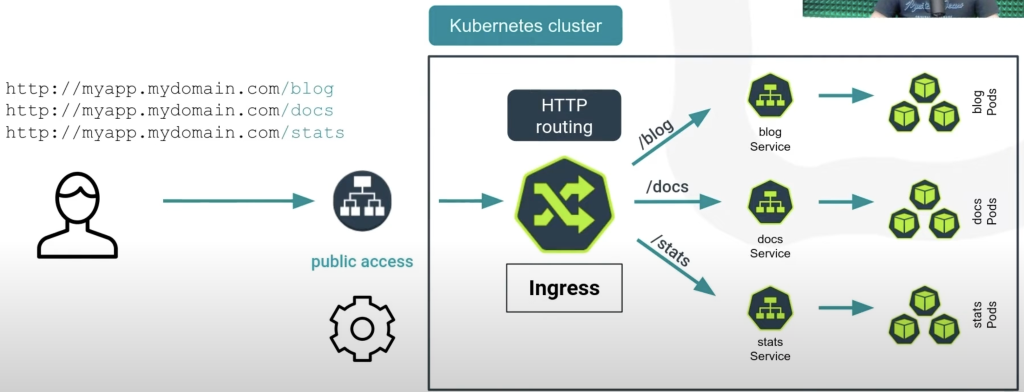

Now, Lets understand How Kubernetes Ingress resources works?

🧩 Components of Kubernetes Ingress

There are primarily three main components that make up a functional Kubernetes Ingress setup:

1. Ingress Resource (Kubernetes Object)
2. Ingress Controller
3. Load Balancer (Optional, based on infrastructure)

Let’s understand each clearly:

🔹 1. Ingress Resource

• It’s a Kubernetes API object (Ingress) defined in YAML.
• Defines how external HTTP/HTTPS traffic is routed to Kubernetes services based on rules like host and path.

🔹 2. Ingress Controller

• Ingress Controller is a specialized controller pod running inside Kubernetes.
• Continuously monitors Kubernetes Ingress objects and updates its internal configuration based on these definitions.

Examples of popular Ingress Controllers:

• NGINX Ingress Controller (most common)
• Traefik
• AWS Load Balancer Controller (ALB)
• HAProxy Ingress
• Contour (Envoy-based), etc.
• Ingress Controllers do:
  • Watch Kubernetes API for changes in Ingress resources.
  • Dynamically update configurations (e.g., NGINX config, Traefik config, Envoy proxy settings).
  • Perform L7 routing (based on hosts/paths), SSL termination, and load balancing.

🔹 3. Load Balancer (Optional Component)

• External load balancer (like AWS ELB, ALB, GCP LB, Azure LB, or MetalLB) provides a single entry point (external IP) to your Ingress Controller pods.
• If you’re on a cloud-managed Kubernetes service (e.g., EKS), this load balancer is typically automatically created by setting the ingress controller’s service type to LoadBalancer.
• It distributes incoming external traffic across multiple Ingress Controller pods, ensuring high availability and scalability.

🔹 4. Ingress Controller Pod (Deployed as Deployment or DaemonSet)

• This component runs inside Kubernetes as pods (part of Deployment or DaemonSet).
• Continuously updates load-balancing rules as per changes in Ingress resources.
• Manages configurations for the underlying proxy (NGINX, Traefik, Envoy, HAProxy, etc.)

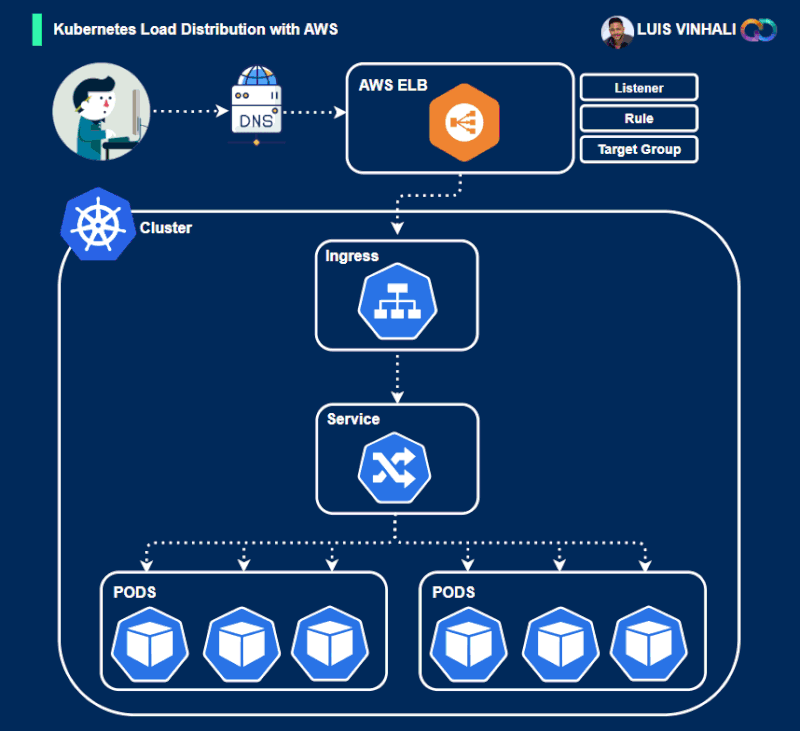

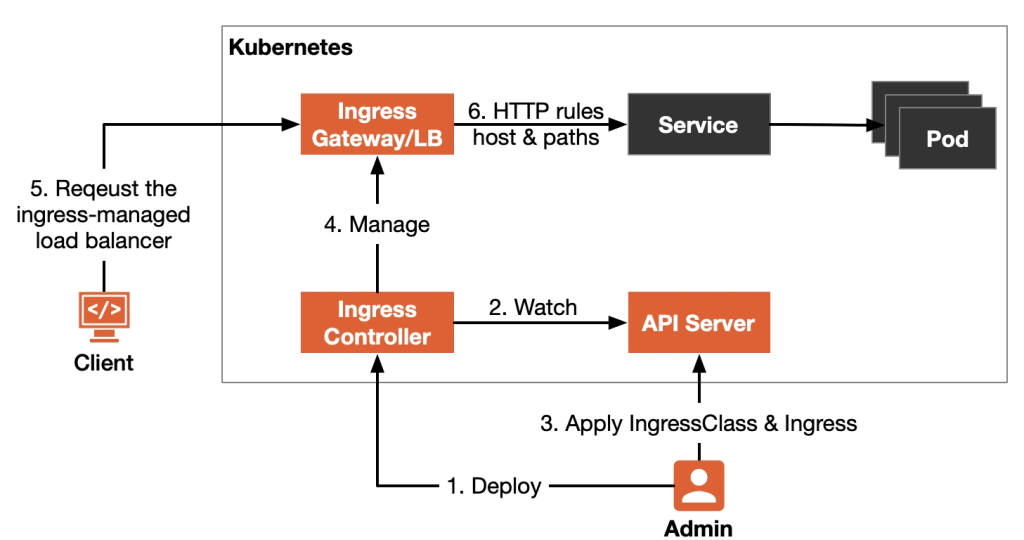

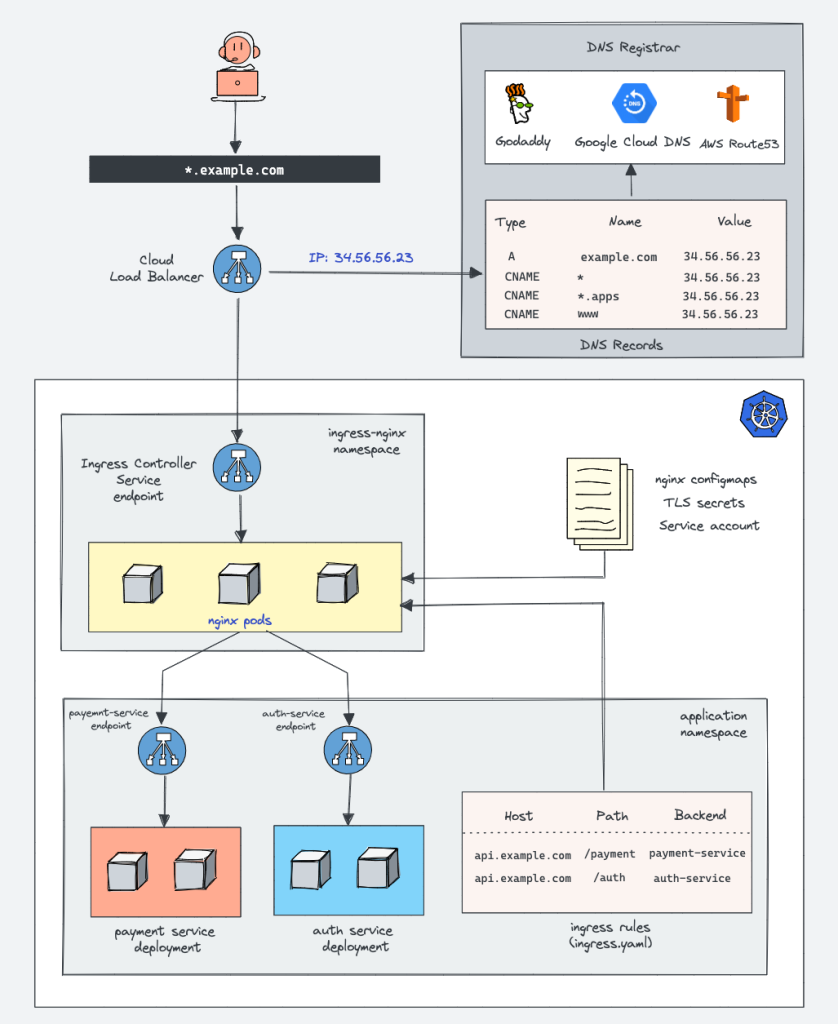

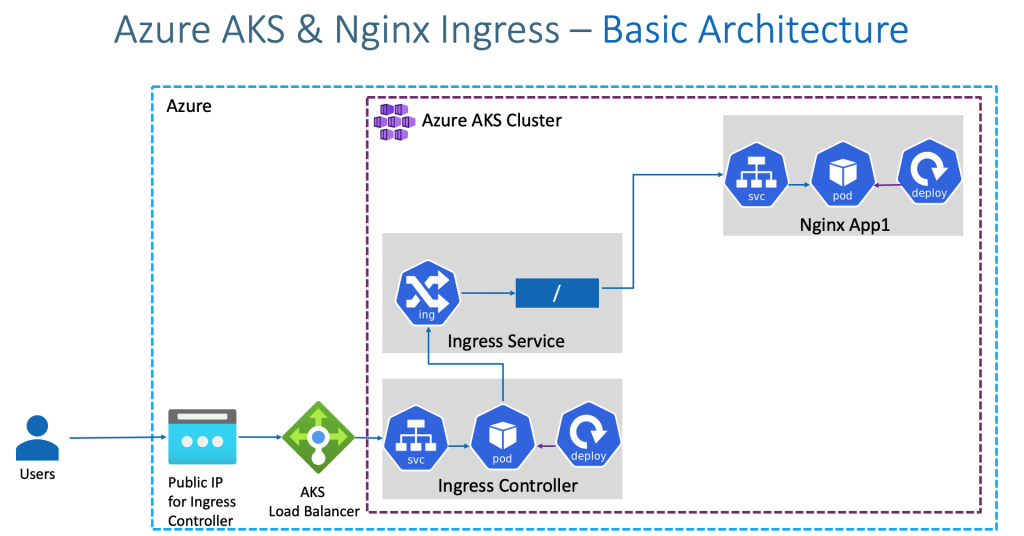

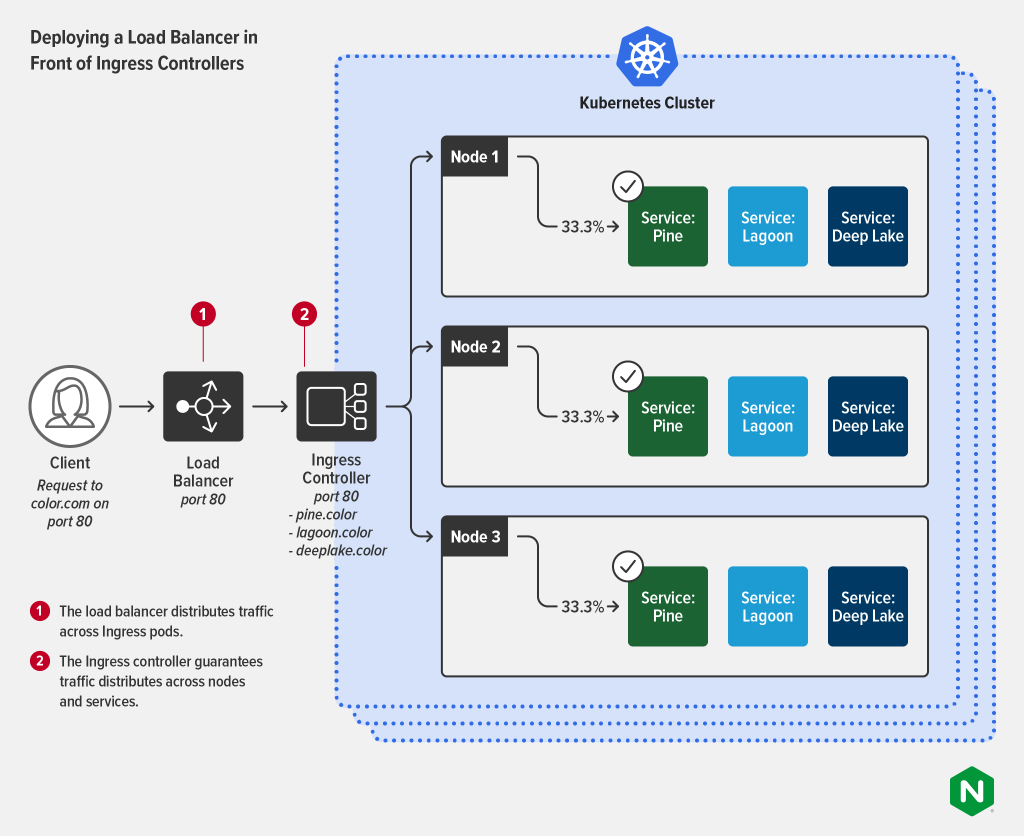

🔹 How the Components Work Together:

External Traffic
      |
Load Balancer (e.g., AWS ELB/ALB, NGINX)
      |
Ingress Controller Pods (e.g., NGINX or Traefik)
      |
Ingress Resource YAML rules (Routing Rules)
      |
Kubernetes Service
      |
Application Pods

• External traffic hits a Load Balancer.
• The load balancer forwards traffic to your Ingress Controller pods.
• The Ingress Controller checks the Ingress Resource rules from Kubernetes API.
• It routes requests to the correct Kubernetes Services and ultimately to Pods.

Now, Lets understand Kubernetes Gateway API

Here’s a clear, precise, and practical overview of:

---

🌀 What is Kubernetes Gateway API?

The Kubernetes Gateway API is a modern, standardized set of Kubernetes resources designed to route and manage network traffic into, out of, and within Kubernetes clusters.

It’s a successor and evolution to the traditional Kubernetes Ingress Resource, created to solve limitations of the legacy Ingress and support advanced use cases in a standardized, extensible, and portable manner.

---

🎯 Why was Gateway API Created?

• Traditional Ingress had limitations:
  • HTTP/HTTPS only, limited multi-protocol support.
  • Complexity with vendor-specific annotations.
  • Lack of advanced routing and traffic management features.
  • Poor support for multi-team and multi-tenant scenarios.

The Gateway API addresses these gaps by introducing a cleaner, standardized, and more flexible set of APIs.

---

📌 Key Components of Gateway API

Gateway API introduces several new Kubernetes objects:

1. GatewayClass
2. Gateway
3. HTTPRoute, TCPRoute, UDPRoute (and other route types)
4. ReferenceGrant (security-related resource)

---

1. 🚩 GatewayClass

• Defines a type of load balancer or gateway, managed by a specific controller.
• Similar conceptually to StorageClass for persistent storage.

apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: aws-alb
spec:
  controller: ingress.k8s.aws/alb

---

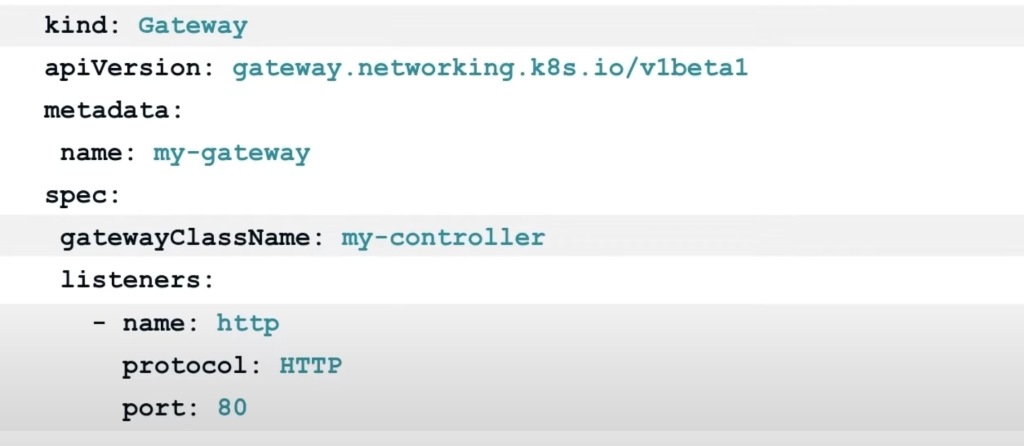

2. 🚪 Gateway

• Represents the actual load balancer instance or network gateway itself.
• Defines listeners (protocols, ports), certificates, and overall traffic entry points.

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: main-gateway
spec:
  gatewayClassName: aws-alb
  listeners:
  - protocol: HTTPS
    port: 443
    name: https
    tls:
      mode: Terminate
      certificateRefs:
      - name: example-com-cert

---

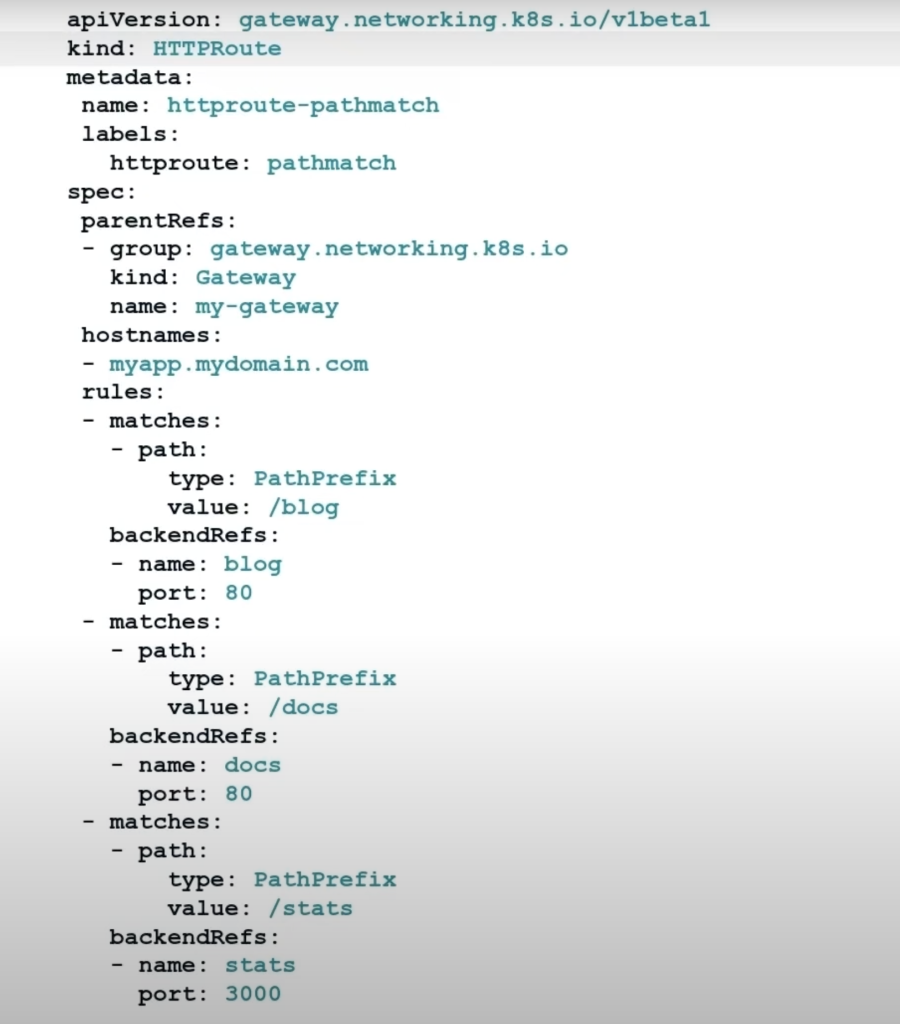

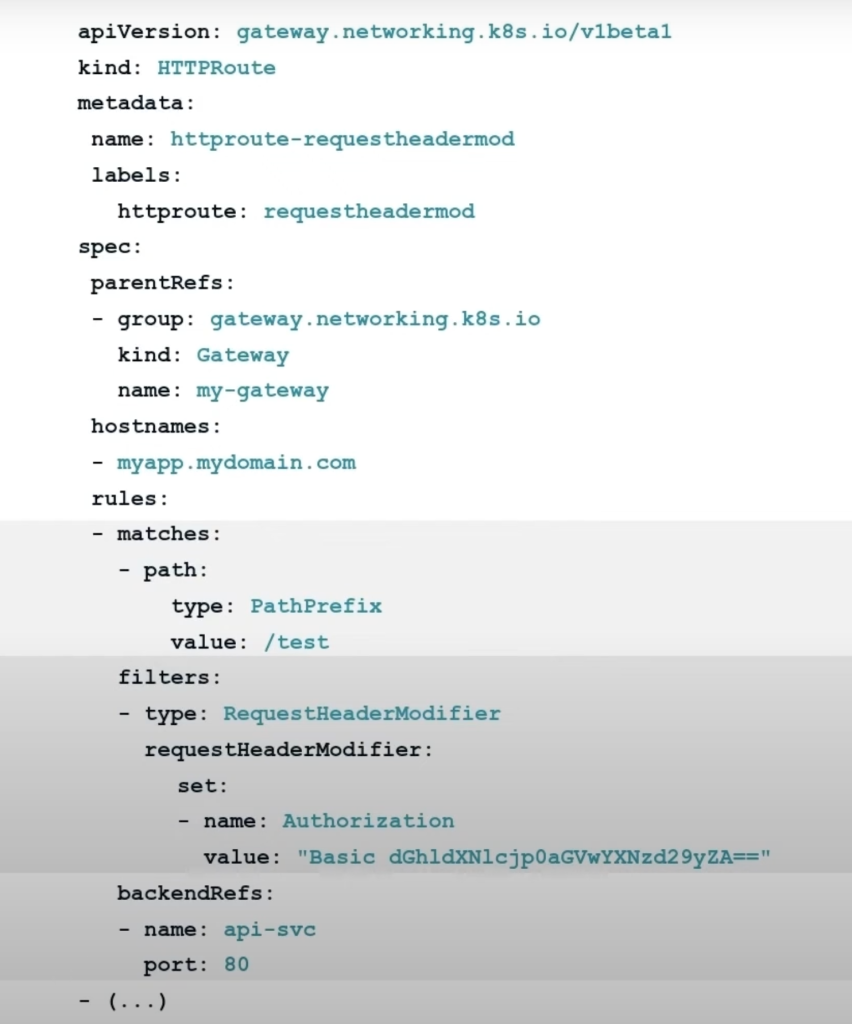

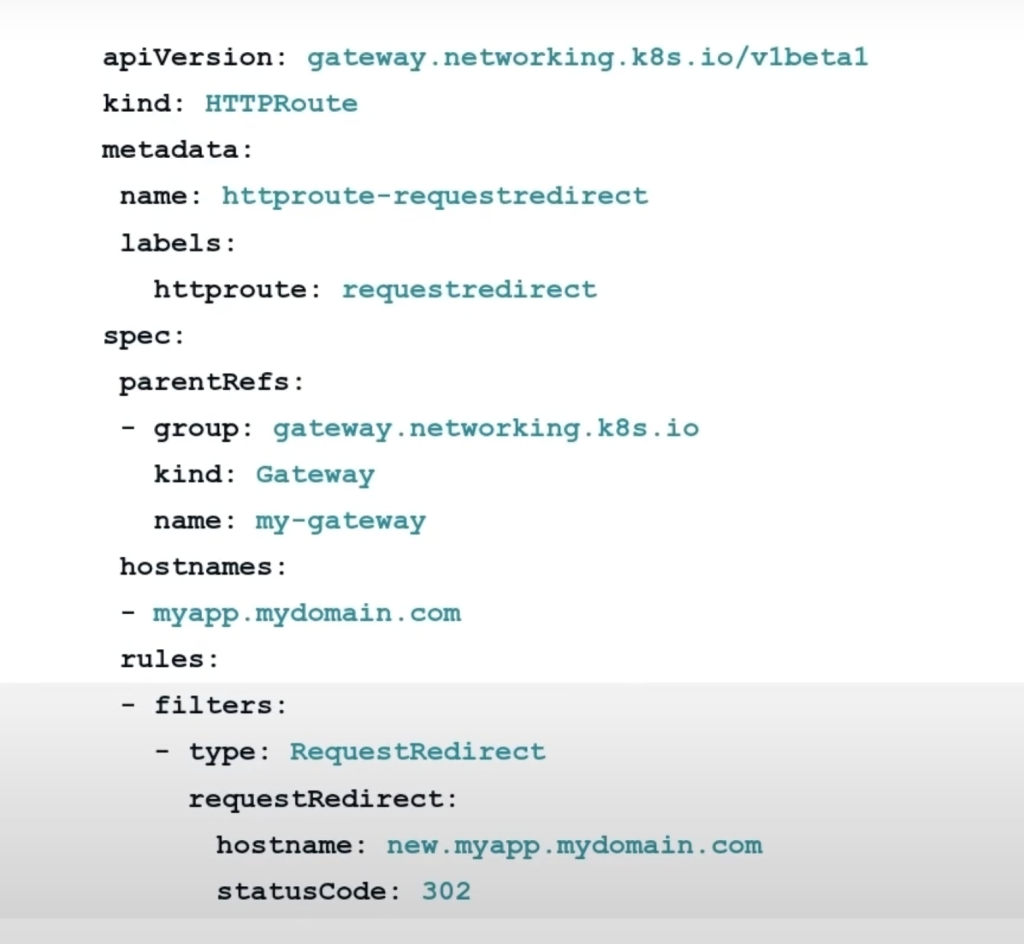

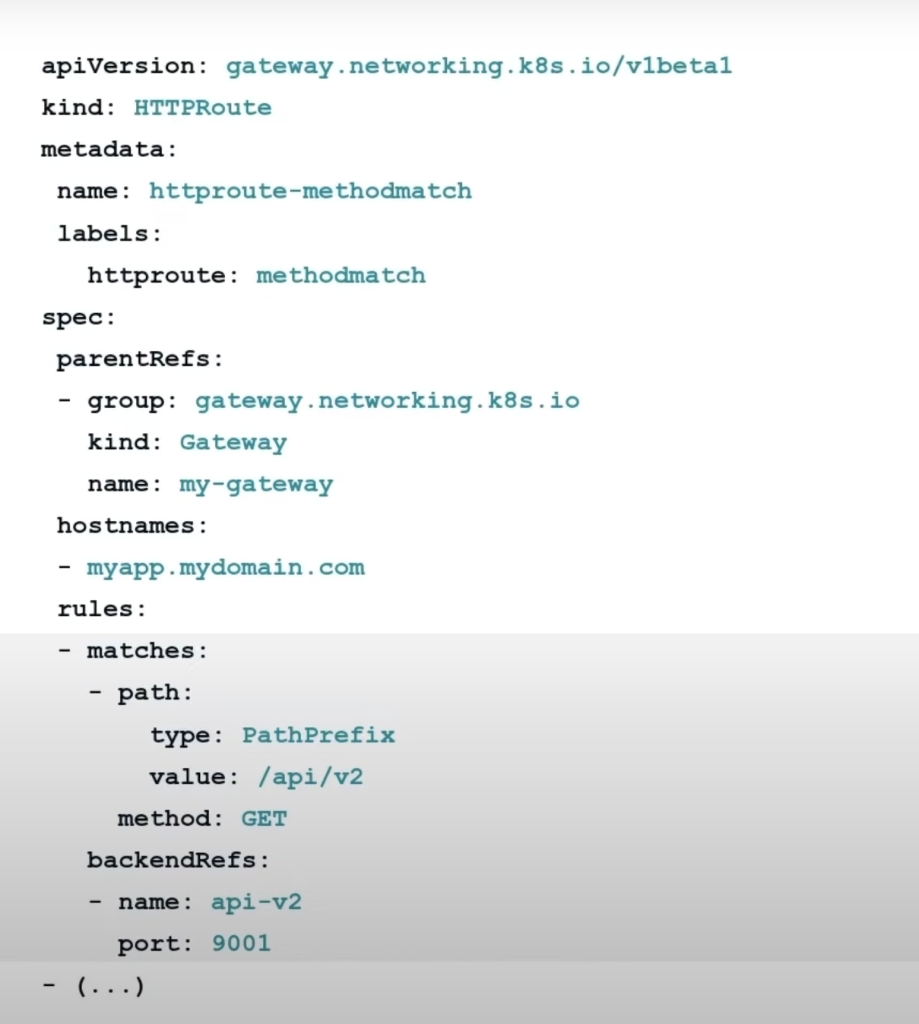

3. 🔗 HTTPRoute (TCPRoute, UDPRoute, etc.)

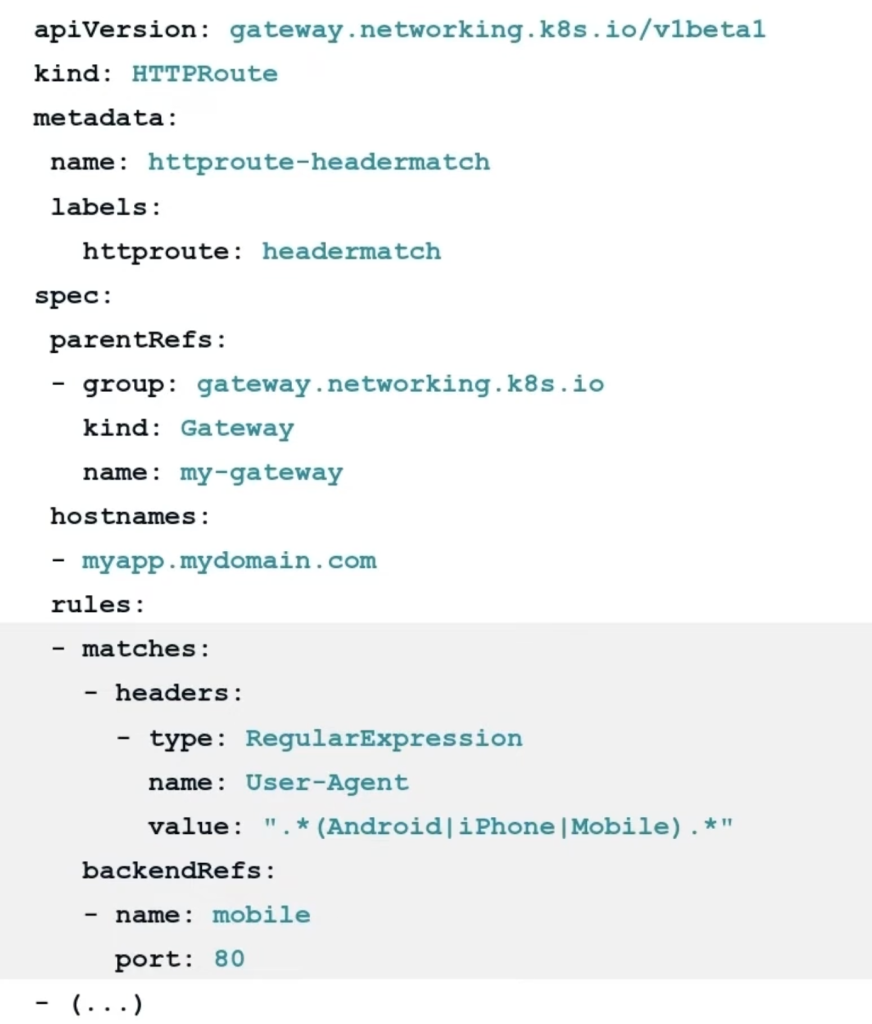

• Defines detailed routing rules based on hostnames, paths, headers, etc.
• Routes attach to Gateways.

Example HTTPRoute:

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: my-app-route
spec:
  parentRefs:
  - name: main-gateway
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: "/api"
    backendRefs:
    - name: api-service
      port: 80
Code language: JavaScript (javascript)

---

4. 🔒 ReferenceGrant

• Manages security by explicitly allowing namespaces to reference resources across namespace boundaries.
• Prevents unauthorized cross-namespace configurations.

---

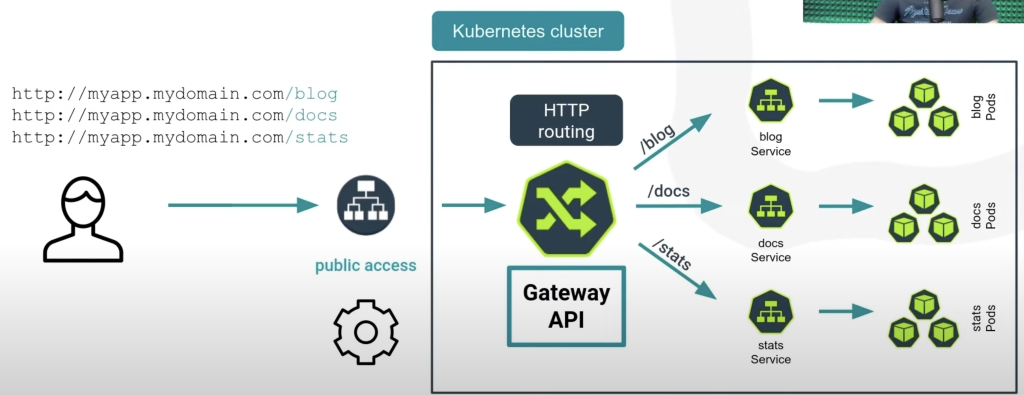

📐 High-Level Architecture of Gateway API

External Traffic
      |
 Gateway (Load Balancer/Proxy)
      |
 HTTPRoute/TCPRoute Rules
      |
 Kubernetes Service
      |
 Application Pods
Code language: JavaScript (javascript)

• Gateway: Entry point for network traffic, defined through a GatewayClass.
• Route Resources: Define how traffic flows to internal services.
• GatewayClass: Connects Gateways to Controllers (Istio, AWS ALB, Contour, etc.).

---

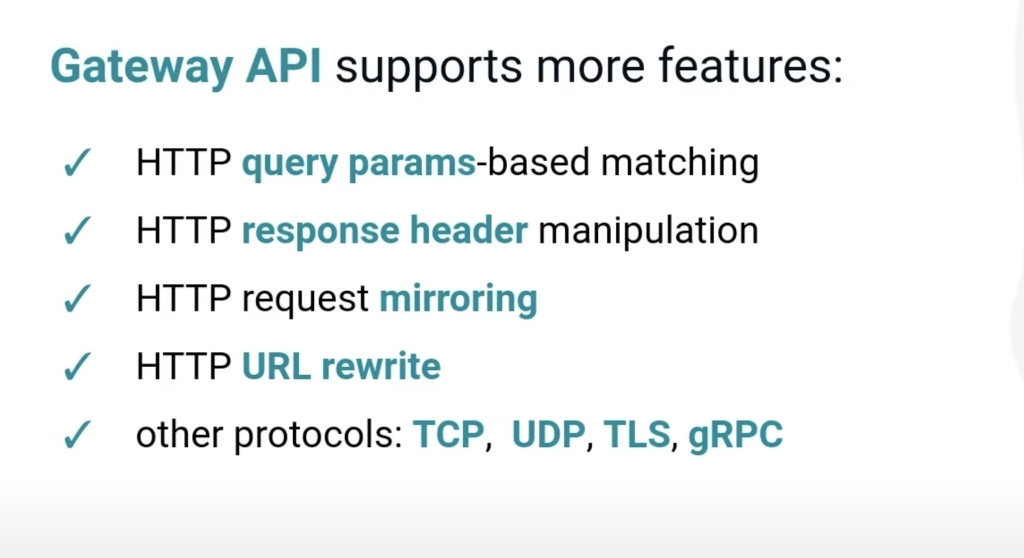

🛠️ Key Benefits of Kubernetes Gateway API

• ✅ Standardized & Vendor-Neutral
  • Works consistently across multiple Kubernetes providers (AWS, GKE, Azure).
• ✅ Advanced Traffic Management
  • Multi-protocol support (HTTP, HTTPS, TCP, UDP).

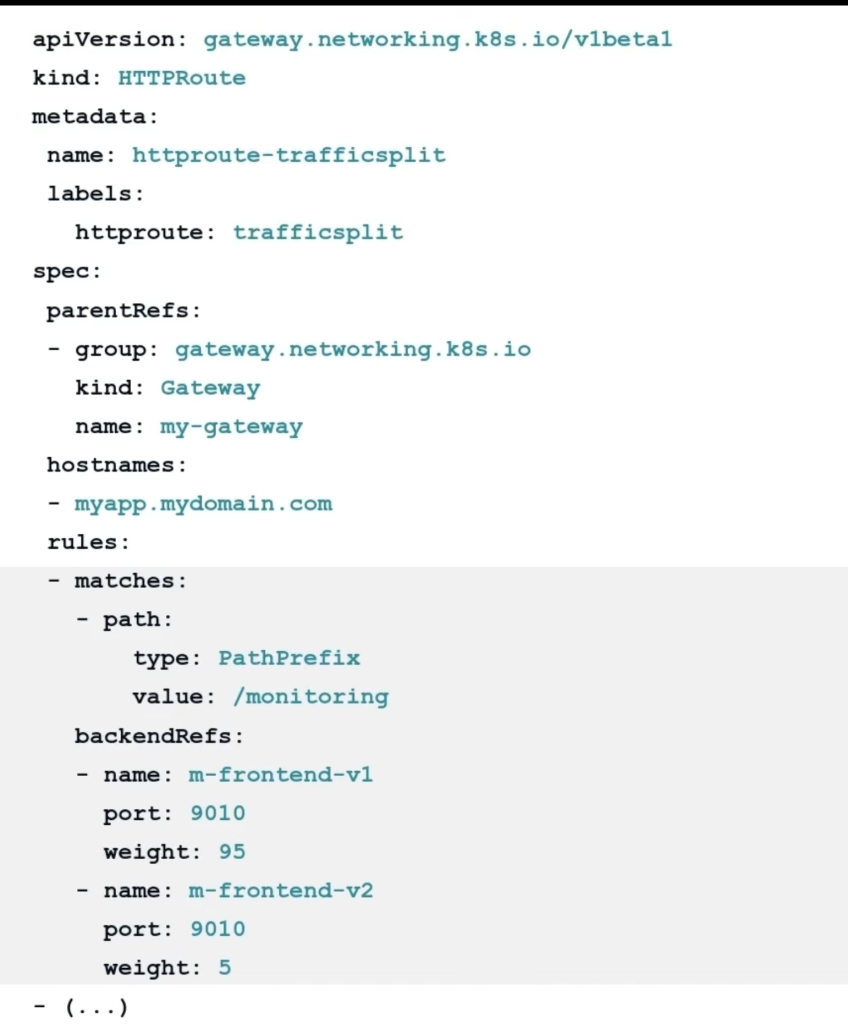

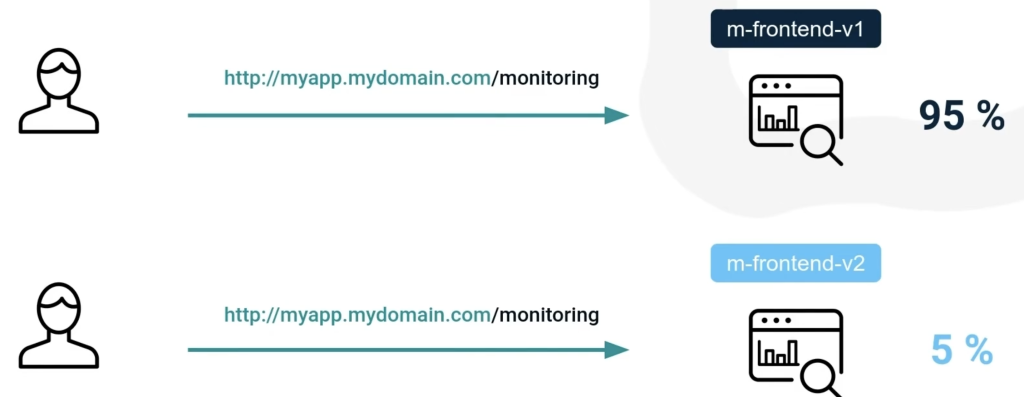

  • Rich routing capabilities: header-based, weighted, and path-based routing.
• ✅ Role-based Access Control (RBAC)
  • Separate Gateway and Route resources allowing multiple teams to securely manage traffic.
• ✅ Multi-tenant Friendly
  • Clear separation between infrastructure operators (Gateways) and application developers (Routes).
• ✅ Extensible & Portable
  • Clear APIs enable easy extension and interoperability across environments.

---

🚀 Controllers Supporting Gateway API:

• AWS Gateway API Controller (ALB integration)
• Istio Gateway
• Traefik Gateway API Controller
• Contour (Envoy-based)
• Ambassador Edge Stack
• GKE Gateway Controller (Google Kubernetes Engine)

---

🔄 Ingress vs. Gateway API (Summary)

Feature	Ingress Resource (Legacy)	Gateway API (Modern)
Routing	HTTP/HTTPS only	HTTP, HTTPS, TCP, UDP, gRPC, etc.
Multi-protocol Support	Limited	Extensive
Advanced Routing Rules	Limited (annotations required)	Rich, explicit API
Role Separation & Security	Limited	Explicit (Gateway & Routes)
Vendor neutrality	Poor (annotations)	Strong (standardized APIs)
Extensibility	Limited	High (designed to be extensible)

---

✅ When Should You Use Gateway API?

• You’re running modern, production-level Kubernetes environments.
• You require advanced routing, security, observability, and multi-protocol support.
• You want clear role separation (RBAC) between infrastructure teams and developers.
• You’re looking for a standardized approach compatible with multiple Kubernetes providers.

---

🎯 Quick Practical Example (Complete):

# GatewayClass
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: external-lb
spec:
  controller: example.io/gateway-controller

---
# Gateway
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: my-gateway
spec:
  gatewayClassName: external-lb
  listeners:
  - protocol: HTTPS
    port: 443
    name: https
    tls:
      mode: Terminate
      certificateRefs:
      - name: example-cert

---
# HTTPRoute
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: frontend-route
spec:
  parentRefs:
  - name: my-gateway
  hostnames:
  - "example.com"
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: "/"
    backendRefs:
    - name: frontend-service
      port: 80
Code language: PHP (php)

This simple example clearly demonstrates how Gateway API is structured and how components interact.

---

📝 Summary (One-line):

Gateway API is the modern Kubernetes standard for flexible, secure, and advanced multi-protocol traffic routing and management in Kubernetes.

That’s the Kubernetes Gateway API explained practically, clearly, and comprehensively!
